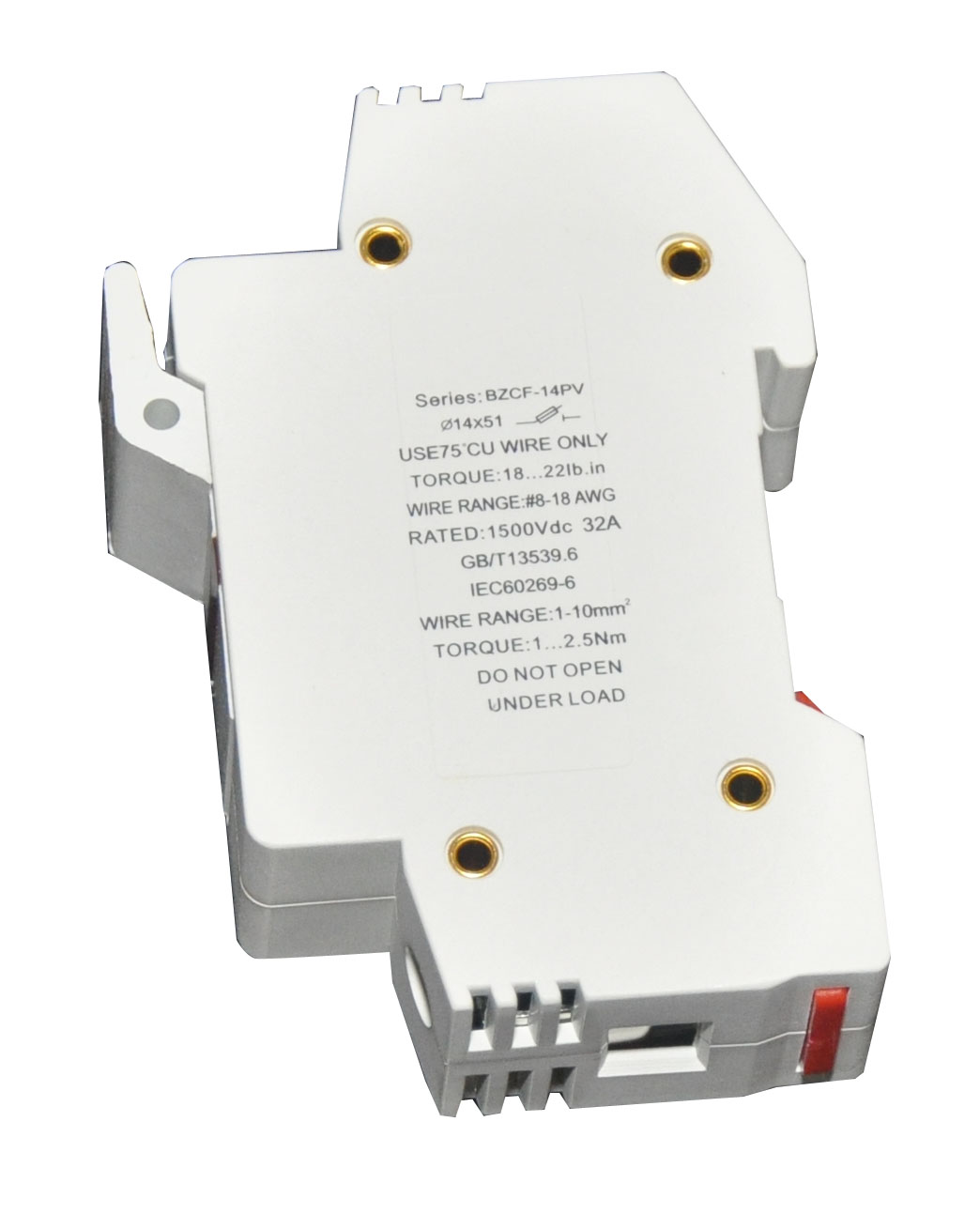

1500VDC Fuse Holder with indicator

BZCF series of fuses for rated DC voltage to 1500V, the c oiurated current to 30A of the line, and the photovoltaic panels and batteries in series in parallel, the charge converter system to do short-circuit break protection; the same time, Variable rectifier system and short circuit fault breaking protection; and do photovoltaic power generation system inrush current and short circuit fault over-voltage fast breaking protection, rated breaking capacity of 20KA, and Division I is now doing the relevant test, once again enhance the product breaking capacity, Comply with the relevant standards IEC60269, GB13539, UL42428 requirements.

The ambient air temperature limit of not more than 90 ℃; the ambient air temperature lower limit of not less than -50 ℃; installation site altitude of not more than 2000m (if more than 2000m, need to specify the requirements, the company can be designed and developed in accordance with customer requirements).
