Photovoltaic Parts

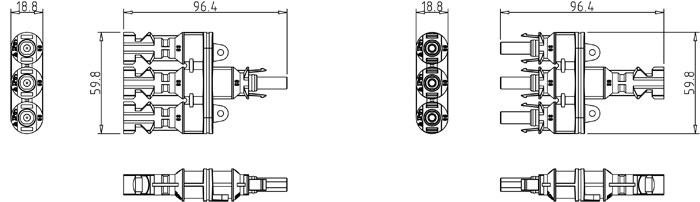

— Solar Connector-B4C/B4D
Product category
Product No. | B4C/B4D |
Rated voltage | TUV 1000V DC / UL 600V DC |
Rated current | 30A |
Suitable cable cross sections | 2.5mm2 ～ 10.0mm2 / 14AWG ～ 8AWG |
Terminal size | Φ4.0mm |
Test voltage | DC 8KV 1min |
Pollution degree | 2 |
Protection class | Class Ⅱ |
Terminal Material | Tinned copper |
Contact resistance | ≤ 5mΩ |
Insulation Materials | PPO |
IP rating | IP67(IEC 60529) |
Pull-out force | ≥ 50N |
Insertion Force | ≤ 50N |
Test temperature | －40℃～ +85℃ |
Flame Class | UL94V - 0 |
